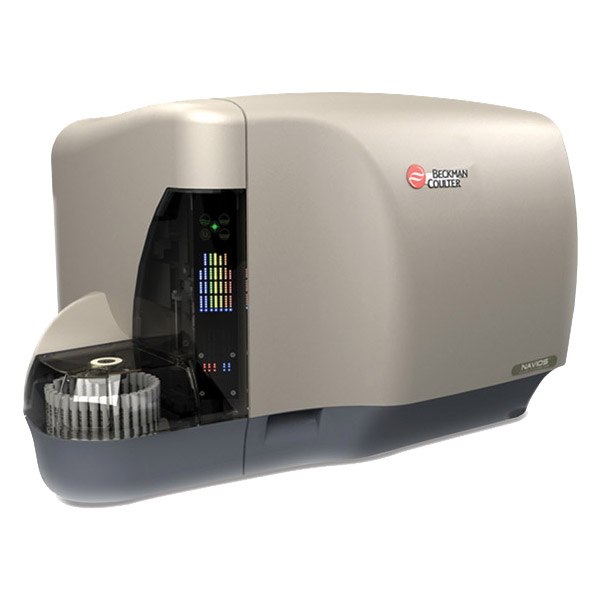

Navios Flowcytometry System

Salient Product Features:

• Bench top compact CE marked 10 colour high speed data collection analyser
• Analyser houses three solid state lasers in Red, Blue and Violet with easily interchangeable optical filters to facilitate detection of a variety of dyes and wavelengths
• A selection of 62 parameters can be processed per analysis with acquisition rate of 25000 events per second with high yield
• Innovative forward scatter detector of Fourier design provides up to 3 measurements of cell size with and visualization of particles down to 0.404 µm in diameter. A side-scatter detector incorporates an independently focused, high-performance photodiode with electronic attenuation
• Throughput of 10000 normal whole blood lymphocytes is 80 tubes/hour and up to 88 tubes per hour of at 10000 events per second of concentrated beads
• Simultaneous measurements of integral, peak and width are available for all parameters, including scatter and fluorescence signals
• 32 tube multi carousel loader with single tube sampling mode, automated work list acquisition and manual work list mode.
• User defined flow rates with options for low, medium and high settings
• System data generated by barcode reading of carousel number, tube location and tube barcode
• Biohazard contained wash station for thorough rinsing of sample probe to maintain sample integrity
• Electronics design incorporates fast, accurate measurement of signals over a wide range of event rates with Fast pulse recovery, sensitivity of dim particles, Minimal linearity errors and dead time
• Innovative laser cartridges with Picomotor driven beam steering optics, Laser control to conserve laser life, Customer temperature regulation options
